Photos
Scanner Pointed at Blind Spot
Scanner strategically pointed at blind spot.
Dash light

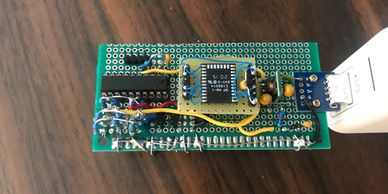

Dashlight Circuit Board

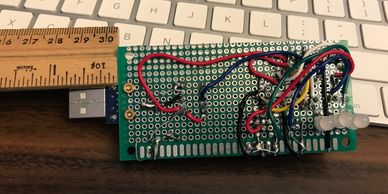

Dash light Led Side
Showing three RGB leds in the lower right of the circuit board used to signal the driver.
House light in development
House light in development
The house light shown in development here. The house light is an auxiliary unit (that mounts above garage door). Guests that don't have the dash light can use to monitor the blind spot.
House Light
House light in development
Dash Light in vehicle
House Light mounted between the two garage doors.
Dash Light in vehicle
House light in development
Dash Light in vehicle

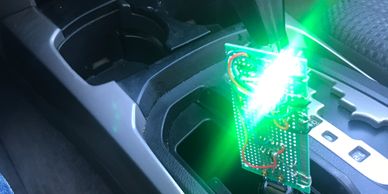

Dash Light in action
Completely Blind
Scanner pointed at Blind Spot
Taken while pulling out of driveway. No view whatsoever of the street.
Scanner pointed at Blind Spot
Scanner pointed at Blind Spot
The scanner is also impervious to weather. It was tested successfully in a raging snow storm as well.
Rev 2 Sensor Unit

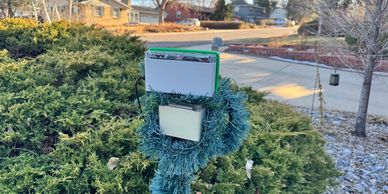

Rev 2 Sensor Unit sitting on top of Rev 1
Rev 2 Sensor Unit sitting on top of Rev 1
Rev 2 Sensor Unit sitting on top of Rev 1
Rev 2 Sensor Unit sitting on top of Rev 1

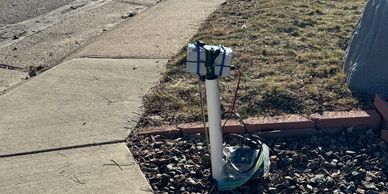

Initial deployment of Rev 2. This is the down street sensor.
Rev 2 Up Street Sensor
Rev 2 Sensor Unit sitting on top of Rev 1
Rev 2 Up Street Sensor beautified
Initial deployment of Rev 2 up street sensor.
Rev 2 Up Street Sensor beautified
Rev 2 Sensor Unit sitting on top of Rev 1
Rev 2 Up Street Sensor beautified

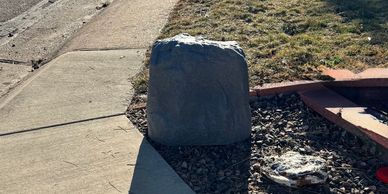

Rev 2 upstream sensor covered by faux rock.
